Stainless Steel Panel, Concrete, or Bolted FRP Tank - A Guide to Choosing the Right Option
When it comes to water storage solutions, selecting the right type of tank is crucial. There are several options available in the market, but three popular choices are stainless steel panel tanks, concrete tanks, and bolted FRP tanks. Each of these options comes with its own set of advantages and considerations.
In this blog, we will compare these three types of tanks across various factors, such as durability, hygiene, heat retention, weight, installation time, design flexibility, recyclability, initial cost, and total life cycle cost, to help you make an informed decision.

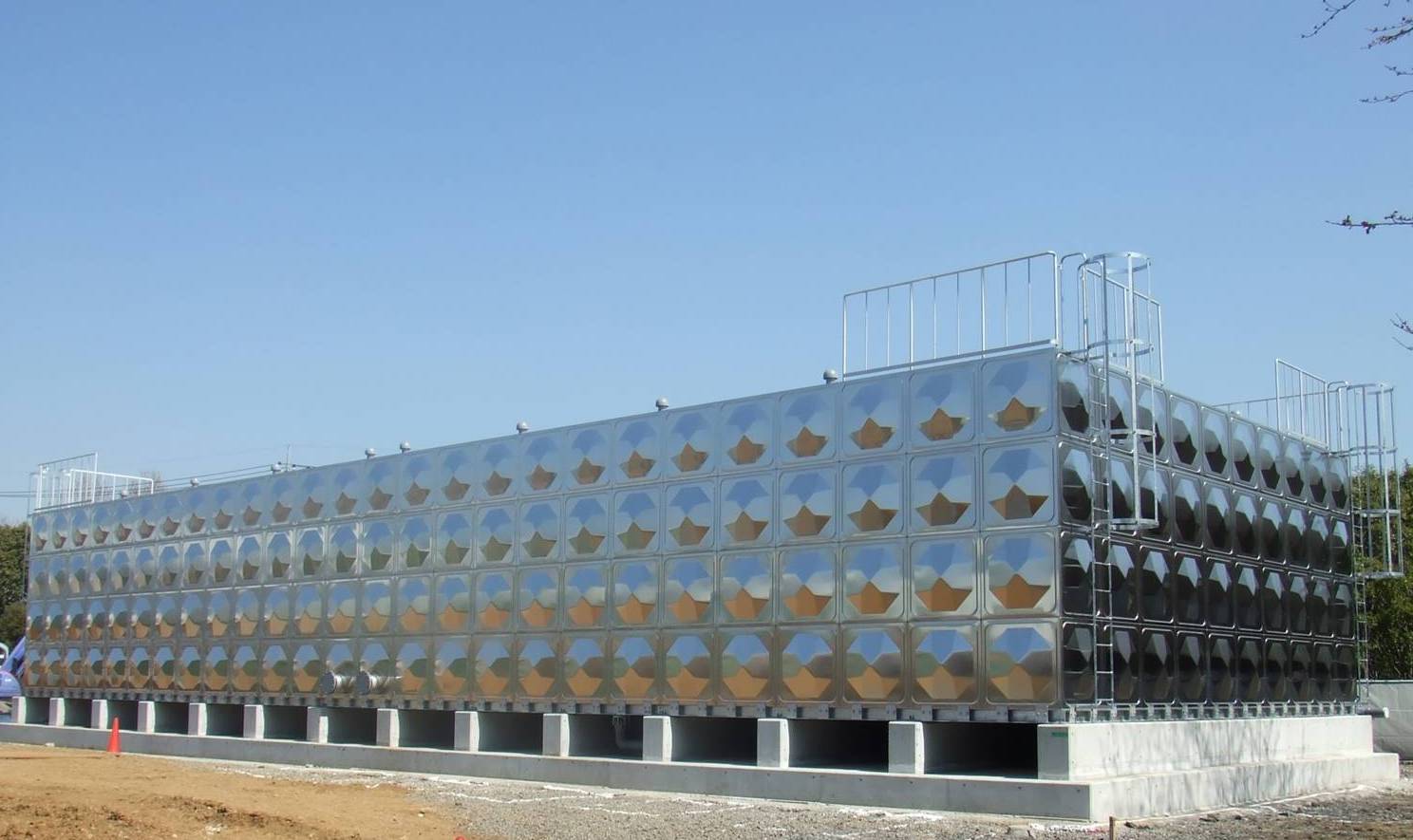

Durability is a critical factor to consider when choosing a water storage tank. Stainless steel panel tanks are renowned for their exceptional durability, boasting zero leakage and a long lifespan. These tanks are built to withstand the test of time, ensuring your water storage needs are met without any concerns about leaks or structural integrity.
On the other hand, concrete tanks also have a long lifespan; however, they are prone to cracks and leaks over time. Regular maintenance and repairs are necessary to keep them in good condition.
Bolted FRP tanks offer durability as well, but it's important to note that gasket deterioration and leakage can occur over time, necessitating proper maintenance to prevent potential issues.
Hygiene is another crucial aspect to consider, especially when storing drinking water. Stainless steel panel tanks are a safe option as stainless steel does not require any coating. This eliminates the risk of substances from the tank material leaching into the water, ensuring optimal water quality.
In contrast, concrete tanks without a proper coating can lead to substances from the concrete leaching into the stored water, potentially affecting its quality.
Bolted FRP tanks can transmit UV light, which can result in deterioration and bacteria growth. Therefore, ensuring proper maintenance is necessary to ensure water hygiene.
Heat retention is an important consideration, particularly if you need to maintain the temperature of the stored water. Stainless steel panel tanks are designed with insulation and interior reinforcement to minimize heat transfer. This feature helps retain the temperature of the stored water, whether it needs to be kept cool or warm.
Concrete tanks, on the other hand, have relatively low heat transfer properties, which may affect their heat retention capabilities.
Bolted FRP tanks may also experience heat transfer through their external reinforcement, potentially impacting heat retention.
Weight of the Tank
The weight of the tank is another crucial factor, especially when it comes to transportation and installation. Stainless steel panel tanks are approximately 30 times lighter than concrete tanks, making them easier to transport and install. This lightweight nature simplifies the overall project costs.
In contrast, concrete tanks are notoriously heavy and require a solid foundation to support their weight, making the installation process more challenging and costly.
Bolted FRP tanks are lightweight, providing easier handling during installation.

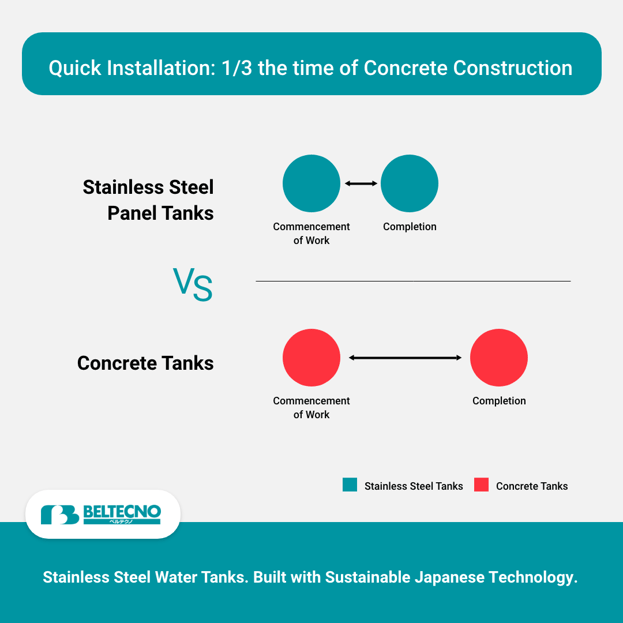

Installation time is an important consideration, especially if you have time constraints or project deadlines. Stainless steel panel tanks can be installed three times faster than concrete tanks due to their prefabricated nature. This advantage translates into reduced labor costs and faster project completion.
Concrete tanks, on the other hand, have a longer installation time compared to stainless steel panel tanks, often resulting in delays and increased labor expenses.
Bolted FRP tanks require more time for construction due to the nature of their bolted assembly, making prefabrication impractical.
Design flexibility is a factor that should not be overlooked, as it allows you to customize the tank to fit the specific requirements of your site. Stainless steel panel tanks offer excellent design flexibility, allowing customization based on space constraints and shape preferences. They can be tailored to fit different site requirements.
Concrete tanks, however, are typically limited to a cylinder shape, offering less design flexibility compared to other tank options.
Bolted FRP tanks, similar to stainless steel panel tanks, can be designed to meet specific site requirements, ensuring a suitable fit for your water storage needs.
Recyclability is an important consideration from an environmental perspective. Stainless steel panel tanks are 100% recyclable, making them an environmentally friendly option for water storage. At the end of their life cycle, stainless steel tanks can be recycled, reducing waste and promoting sustainability.
Concrete tanks, on the other hand, are not easily recyclable, posing challenges in terms of disposal and environmental impact.
Similarly, bolted FRP tanks are not readily recyclable and require proper waste management practices.

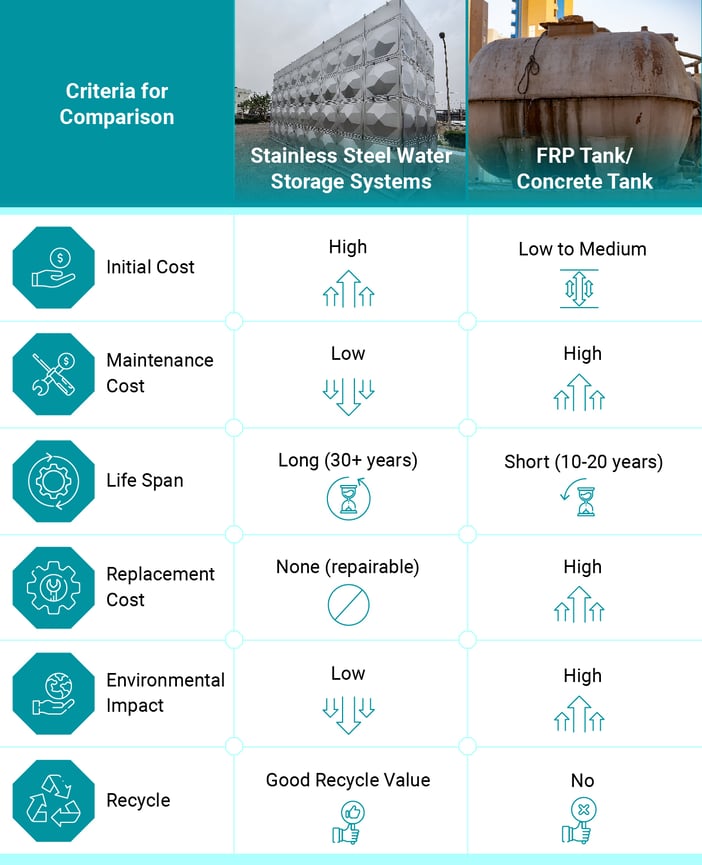

The initial cost is an important factor for many individuals and organizations. Stainless steel panel tanks generally have a higher initial cost compared to other tank types. However, considering their numerous benefits, long lifespan, and minimal maintenance requirements, the total life cycle cost may offset the initial investment.
Concrete tanks typically have a moderate initial cost, making them a more affordable option upfront.
The initial cost of bolted FRP tanks may vary depending on the project's specifications and size.
Total lifecycle cost
Total life cycle cost is an essential consideration as it takes into account not only the initial cost but also the maintenance and repair expenses over the lifespan of the tank. Stainless steel panel tanks have low maintenance costs since they don't require coating and have excellent durability. This significantly contributes to their lower total life cycle cost compared to other tank types.
Concrete tanks, on the other hand, require regular maintenance and repairs, which can add to their total life cycle cost over time.
Bolted FRP tanks have a shorter lifespan of 15-20 years and require gasket maintenance. These factors, combined with potential repairs, can impact their total life cycle cost.
Choosing the right water storage solution involves considering various factors such as durability, hygiene, heat retention, weight, installation time, design flexibility, recyclability, initial cost, and total life cycle cost. While stainless steel panel tanks excel in many areas, including durability, hygiene, heat retention, weight, installation time, design flexibility, recyclability, and total life cycle cost, concrete tanks and bolted FRP tanks have their own unique advantages and considerations. By evaluating your specific requirements and prioritizing the factors that matter most to you, you can make an informed decision that suits your water storage needs.
For more information regarding our stainless steel panel tanks download our product brochure.
Drop us your requirement on firstname.lastname@example.org or call us on any of given numbers +91 9116009580/+91 7300084028
