Beltecno's hot and cold well tanks are one of it's kind quite famous for various HVAC modules.

[fa icon="calendar"] February 15, 2021 at 3:45 PM / by Ankur Verma

Ankur Verma

Summers are ahead and HVAC project companies usually find it difficult to finalize the water tanks for cooling applications. Even then its a commercial HVAC project or Industrial one. In today's blog we will be covering few basics regarding choosing a Hot and cold well tanks and its sizing.

A sturdy and durable tank is always recommended in various chilled water systems. We will explain why it should be strong but before that we would like to explain the major three task for which these tanks are meant.

1) To Accommodate the thermal expansion of the chilled water used in the process.

2) To maintain the positive pressure and temperature at all the time.

3) To maintain a proper suction at chilled water pump.

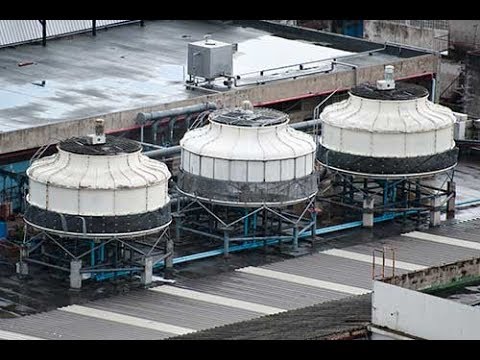

HVAC

Now, why it's required to be strong enough for a tank? the biggest reason is sudden temperature change could lead to cracks and sometimes damage to the system if a proper material is not used, that is the reason why stainless steel tanks are highly recommended to use in such HVAC systems.

What is a split reservoir and How does it work?

To provide a non stop cooling or a certain range of temperature all the time, maybe it's mission critical or on a lower risk in all the  conditions a cooling system should be reliable and strong enough. Following are the major process a cooling system follows during a typical cooling cycle.

  • A typical system require a divided tank or reservoir to make this tank into a hot well and cold well. Beltecno's Panel type tanks are ideal to make partitions or a split reservoir due to the uniform sizes of panel used in the construction of tank, which is (1Mtr x 1Mtr).

  • Water from the cold well is pumped through the suction pump connected with it to point where this cooled water is required to perform as a media for heat transfer due to which heat usually picked up. After completing this cycle the process water returns to the hot well of the panel tank generally warmer them before.

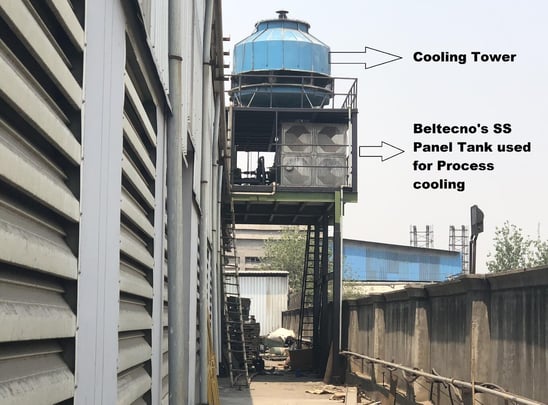

5-1

  • In the next step it's time to pump the processed water from hot well of panel tank to a cooling system it could be a chiller system or a cooling tower where water is cooled down to its pre defined temperature and again supplied back to cold well.

  • Beltecno's Stainless steel panel tanks provides optimum efficiency even when the process flow and temperature varies due to which cooling towers and chillers also work in their best capacity the flow rate and temperature maintained, The insulated panel tanks is full proofed and provides best results in terms of lower heat transfer rate.

  • Recirculating pumps also hold a huge responsibility and the system assures a constant flow to cooling tower or chiller system under different process flow conditions where flow is regulated and changing as per the demand. Water flow has its own importance in terms of performance of the flow is insufficient, it may cause scaling issues. If there is too much water, can cause excess water loss and improper cooling.

banner2

For more information regarding our stainless steel panel tanks download our product brochure by clicking the button below, drop us your requirement on sales@beltecnoindia.com  or call us on any of given numbers +91 9116009580/+91 7300084028

For more Details on Our Product click here Download the Brochure
